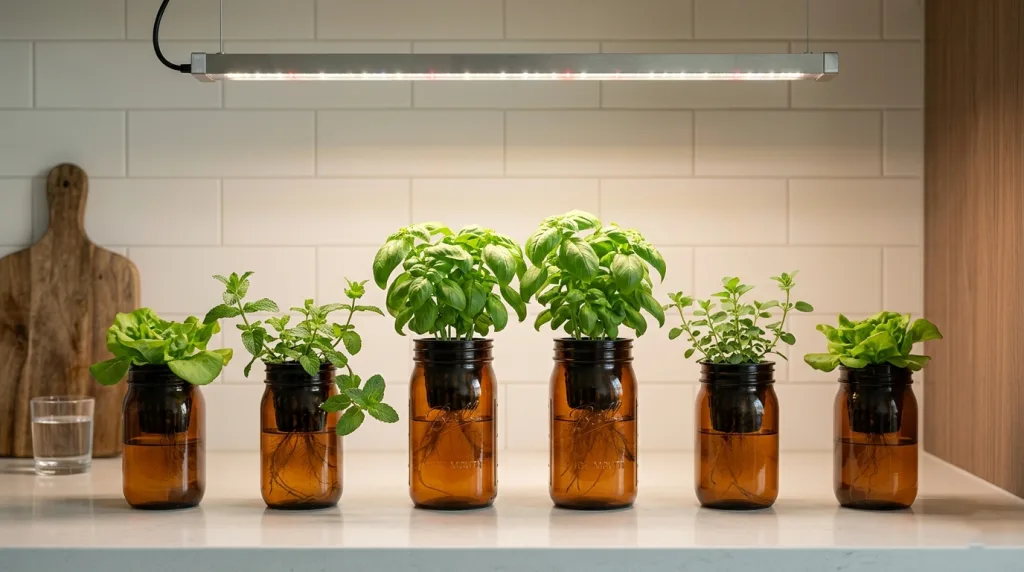

One Light, Many Herbs: Apartment Hydroponic Shelf Layouts That Actually Work

⏳ 15 min read · Last updated: September 2026

Six jars of basil and mint crammed under a single desk lamp, arranged in a random hydroponic herb shelf lighting layout, rarely work out. Within a week the aggressive mint crowds the basil, the outer jars grow weak and pale, and reaching the power switch means knocking plants over. Map the positions to how light falls off from the center instead, and the same plants thrive without a second light panel.

This guide walks through three concrete shelf layouts that fit real apartment spaces, plus the EC math, fan placement, and troubleshooting steps that keep every jar productive. If you are still picking your first system, start with the apartment hydroponics beginners guide first, then come back here once you know which jars or kit you are working with.

💡 Why Your Hydroponic Herb Shelf Lighting Layout Matters

When you start arranging jars in a small apartment, treating every plant as equals leads to stunted growth. A strategic hydroponic herb shelf lighting layout recognizes that light energy decays exponentially as you move away from the center bulb. When you put shade-loving lettuce in the center and light-hungry oregano on the edges, neither crop reaches its full potential. Understanding your light’s physical footprint is the first step to bigger yields.

☀️ The Geometry of Light Decay on a Shelf

Your grow light projects a cone of energy onto your shelf. Dead center, the intensity is fierce enough to support strong basil and thirsty mint. However, just six inches to the left or right, that energy drops by up to fifty percent. That decay is not a problem, though, because it is a useful tool. In fact, you can exploit this natural fading to grow different types of crops under one hood without burning the sensitive ones. For a deeper look at the right gap between bulb and canopy, see the dedicated grow light distance for hydroponic herbs guide.

To map out your shelf’s light zones in five minutes:

1. Turn on your light panel while the room is dark so you can see the bright circle on the shelf surface.
2. Mark the intense center zone with a piece of tape on the shelf or counter.
3. Identify the outer ring where the light visibly softens, then mark that too.
4. Use the hydroponic grow light calculator to confirm the wattage spread for your exact shelf size.

🔆 Balancing different crop heights

Uneven growth rates ruin a flat layout. Mint, for example, shoots up fast and creates a canopy that shades everything underneath it. In contrast, creeping thyme and low-profile spinach stay close to the reservoir lid. If you do not manage these heights, the tall plants soon hog the light and starve their neighbors. To counter this, keep your panel at 6 to 8 inches above the tallest leaves and prune mint hard once a week so it does not push past that line.

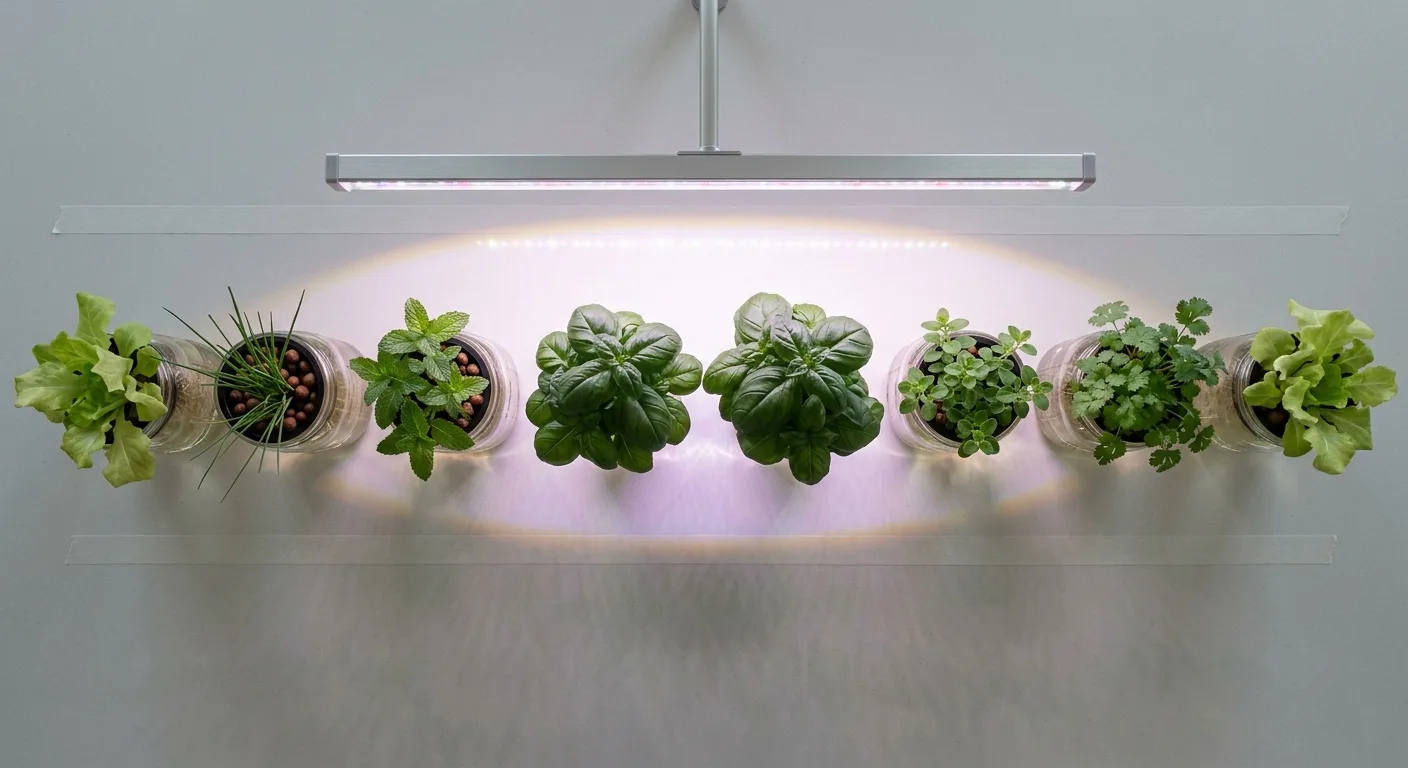

🪴 The Classic Three-Tier Apartment Blueprint

A structured hydroponic herb shelf lighting layout organizes your jars into concentric circles. This blueprint also maximizes every square inch of a standard wire rack or kitchen counter. By prioritizing placement based on biological needs, you avoid the common beginner mistake of burning tender greens while starving hearty herbs. This setup uses a safe middle-ground EC 1.5 to feed everyone adequately under one shared timer.

Concrete dimensions for a 24 inch wide LED bar over a kitchen counter: place the bar 7 inches above the canopy, mark a 6 inch wide bright center stripe directly under the bar, and reserve a 4 inch outer band on each side for shade-tolerant crops. That setup therefore gives you about 8 jars in a single row without crowding.

🌿 Tier one: high-light heroes

The dead center of your light footprint is prime real estate. This spot belongs exclusively to plants that crave intense light because they need it to produce their essential oils. When these crops get full exposure, their stems grow thick and their flavor profiles intensify.

Reserve the center stripe for these light-hungry varieties:

• Genovese basil, which needs high light to build large, cupped leaves
• Peppermint and spearmint, which require bright rays to prevent leggy stems
• Oregano, which thrives basking in direct, intense energy

🥬 Tier two: leafy greens and shade lovers

The perimeter of your light spread, on the other hand, offers cooler, gentler energy. Tender greens thrive here because they do not have to fight off intense heat. When you place a delicate head of buttercrunch lettuce in the center, the leaves crisp up and the plant bolts within days. The outer edge also matches their natural preference for dappled shade and keeps cilantro from going to seed prematurely.

For first-timers picking which crops to load into each zone, the best herbs for small hydroponics roundup covers the seven varieties that handle apartment conditions most reliably.

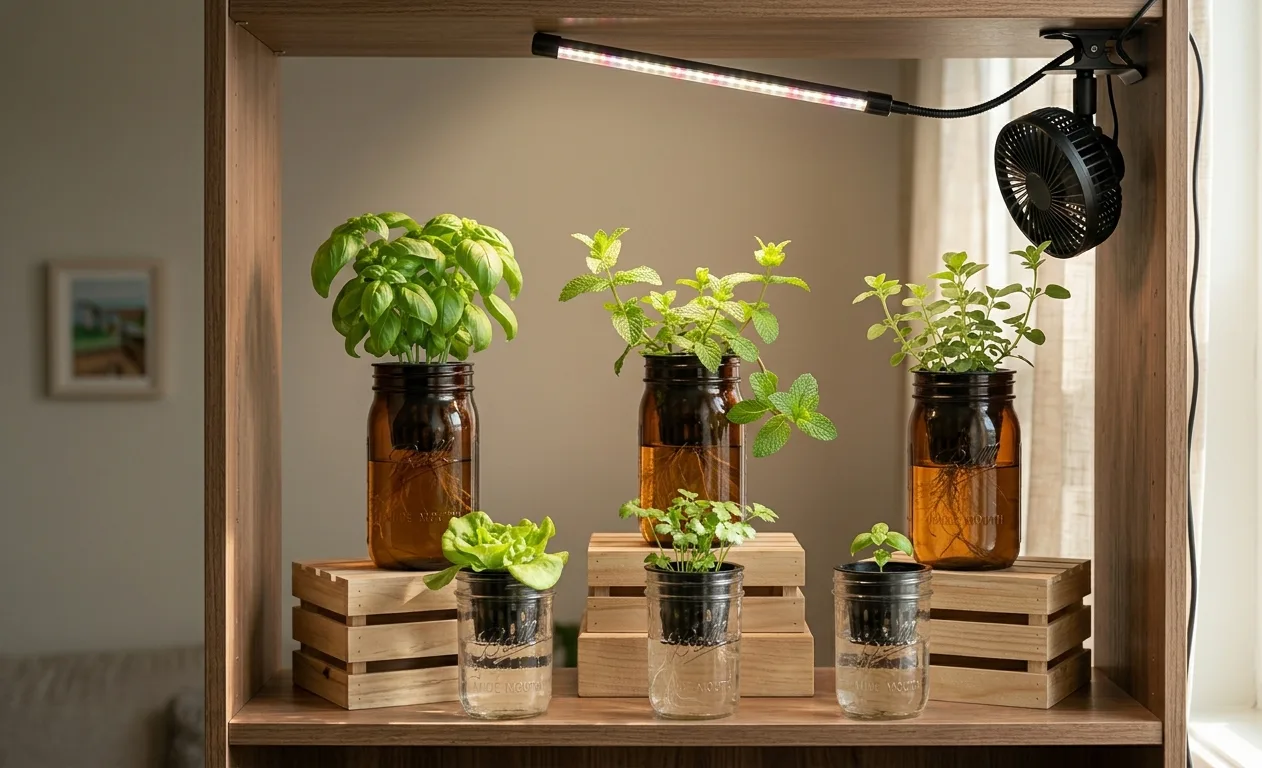

🌱 The Asymmetrical Stadium Layout for Awkward Spaces

Not every apartment has a perfect square footprint for a symmetric hydroponic herb shelf lighting layout. When you are growing on a narrow windowsill or a bookshelf, you have to get creative with vertical space. An asymmetrical setup uses height staggering so every jar gets enough photons without casting dark shadows over the smaller seedlings. Lean on the Kratky method here, since dealing with pump tubing on staggered heights is a nightmare.

🍃 Stacking tall jars behind short ones

When depth is limited, build a stadium-seating arrangement. Place your shortest jars and brand-new seedlings at the very front edge of the shelf. Behind them, prop your taller, mature plants on overturned empty pots or small wooden blocks. This slope ensures the grow light hits the faces of all the leaves evenly rather than just burning the tops of the tall plants while the short ones starve in the dark.

To create a stadium layout safely:

1. Finally, tilt your grow light panel slightly toward the back wall.
2. Set your shortest seedlings in the front row, closest to the shelf edge.
3. Place blocks or risers under the back row to raise mature plants.
4. Use the seed-to-harvest calculator to predict when each row needs to be rotated forward.
5. Check that your reservoir water stays between 65 to 75°F (18 to 24°C).

🌾 Dealing with window glare

When your shelf sits near a window, natural sunlight interferes with your carefully planned angles. The sun pulls plants toward the glass, so stems bend and stretch unevenly. To counter this, rotate your jars a quarter-turn every three days. This keeps the main stems growing straight up toward your artificial light source instead of leaning hard toward the window all morning.

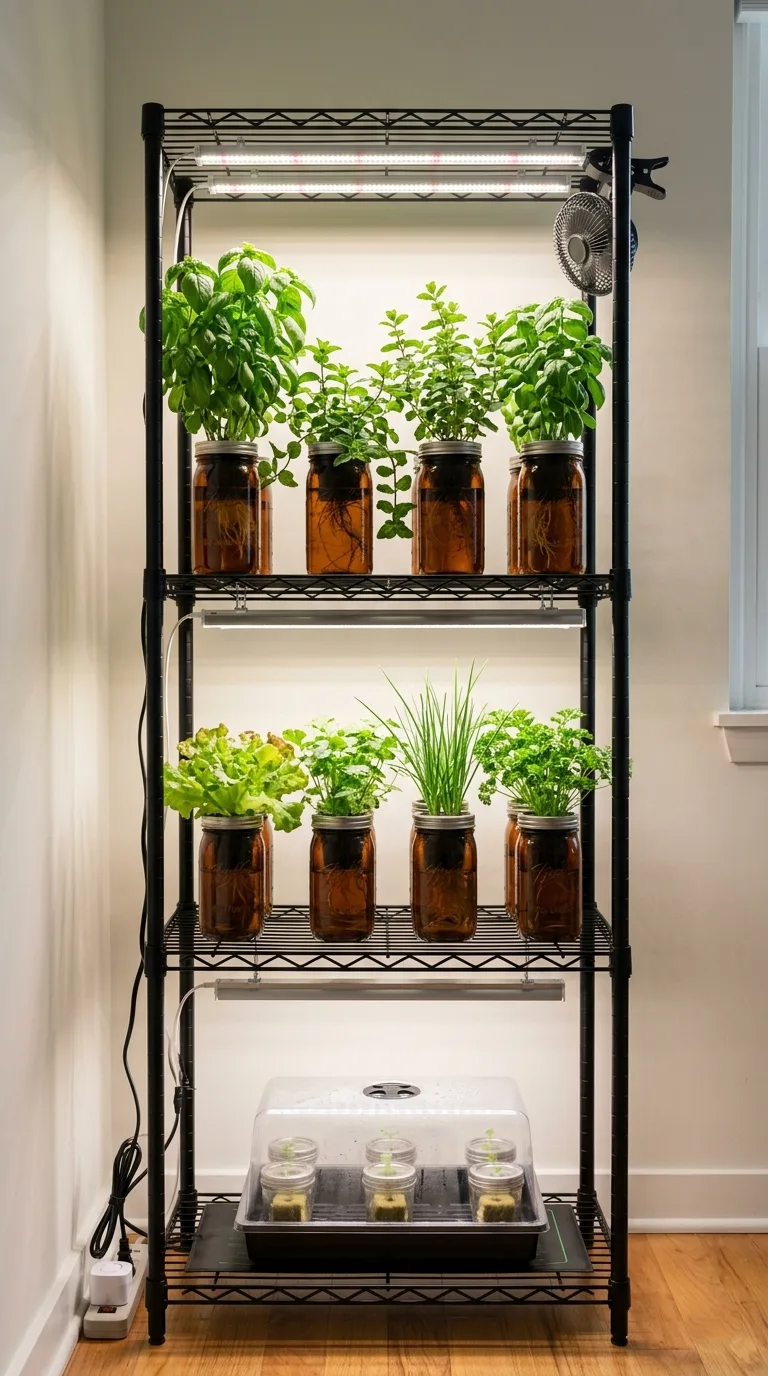

📏 The Stacked Multi-Tier Wire Rack Setup

For renters with very little floor space, a 3-tier wire rack with one light per shelf turns a 2 square foot footprint into a serious herb garden. Each tier becomes its own micro-shelf with its own dedicated hydroponic herb shelf lighting layout. The trick is wiring all three lights to a single timer so the schedule stays consistent without needing three plugs or three apps.

🌿 A simple 3-shelf split that works

Assign each tier a single role rather than trying to grow everything on every level:

• Top shelf: high-light center plants. Basil, oregano, mint. Light at 6 to 8 inches above canopy.
• Middle shelf: leafy greens and gentler crops. Lettuce, cilantro, chives. Light at 6 to 8 inches.
• Bottom shelf: seedling and germination zone. Use a small heat mat plus the lowest wattage of your three lights.

That separation also lets you set different schedules per shelf if your lights are on separate plugs. For a setup that runs while you are at work, the 9-to-5 apartment light schedule walks through the timer logic. If you are still picking your lights for each tier, the 3 best LED grow lights for countertop hydroponics roundup covers the panels that actually fit a wire rack without bending the brackets.

🛠️ Depth, weight and hanging lights without drilling

Pick a rack at least ten inches deep, so the jars sit fully on the shelf with a little air behind them, and check its rated load before any water goes on it. A standard wire rack usually holds about 50 lb per tier, plenty for the six to nine quart jars a 3-foot shelf takes, while a decorative floating shelf often tops out near 15 lb. If the rack wobbles when you walk past, level its feet and push it flush against the wall first; an anti-tip strap stops the last of the rocking, so check what your lease allows before you fix one.

Hang each light from the tier above instead of the ceiling. Loop heavy-duty zip ties through the wire grid and the panel’s brackets, pull them snug at 6 to 8 inches above the canopy, and move the ties up as the plants grow. The no-drill setup guide for renters covers the rest of a deposit-safe build.

🌊 Managing Nutrients Across a Mixed Lighting Layout

A beautiful hydroponic herb shelf lighting layout will not produce food if your nutrient math is wrong. When you mix different species under one light, you cannot tailor the reservoir strength to just one plant. If you feed for the mint’s heavy appetite, the lettuce suffers fertilizer burn. However, you have to strike a delicate balance that keeps every crop fed without tipping into toxic levels.

💧 Finding the middle ground

Pushing any herb past the top of its range to force faster growth backfires: the tips burn brown and papery and the leaves curl inward. For a mixed herb shelf, target an EC around 1.5, since it provides enough food for the heavy feeders without crisping the delicate greens.

To maintain a stable mixed-shelf reservoir:

• Use the hydroponic pH and nutrient calculator to find the exact baseline dosage for your jar size.
• Maintain pH at 5.5 to 6.5 to prevent nutrient lockout.
• In a pumped or aerated system, top off daily with plain pH-adjusted water so evaporation does not concentrate the salts.
• Perform a full reservoir change every 2 weeks to reset the mineral balance.

🧪 Troubleshooting tip burn on the brightest jars

When the outer edges of your leaves turn crispy and brown, your nutrient concentration has spiked. While plants drink water under the hot lights, they leave the fertilizer salts behind. As a result, the remaining liquid becomes concentrated and burns the delicate root tips. You will notice this first on the plants sitting in the brightest center zone because they transpire the fastest.

🌬️ Airflow and Fan Placement on a Crowded Shelf

Packing multiple jars together creates a dense, humid microclimate. While this hydroponic herb shelf lighting layout maximizes your harvest space, it also restricts natural air movement. When the air stalls between dense basil leaves, moisture gets trapped. That invites powdery mildew to colonize your herbs before you notice the fuzzy white patches.

⏱️ Positioning your USB fan

A small clip-on USB fan provides the gentle breeze your plants need to build strong stems. The goal is not a hurricane, though, since you just want the leaves to rustle slightly. This movement mimics outdoor wind and also encourages the plants to reinforce their cellular structures. Set your fan and lights on a reliable schedule using one of the best compact timers made for small setups.

Proper fan placement requires a few simple steps:

1. Clip the fan to the corner post of your wire rack or bookshelf.
2. Aim the breeze slightly above the main canopy rather than at the delicate stems.
3. Hold the room air temperature at 60 to 70°F (15 to 21°C).
4. Keep room humidity between 50 to 70 percent to discourage mildew.

✂️ Preventing stagnant air pockets and dark-period mistakes

Airflow is not just about the leaves, it affects the root zone too. If you are running a DWC system, keep your air pump below water level or use a check valve to prevent back-siphoning while keeping the bubbling action strong. For Kratky jars, stagnant air around warm glass heats the reservoir. Once the water gets too warm, roots lose access to oxygen, which leads directly to root rot. The fan should also stay on a sensible cycle, since herbs still need a true rest period at night, as covered in do hydroponic herbs need darkness at night.

🛠️ What to Check When Your Layout Fails

Even the perfect hydroponic herb shelf lighting layout hits hiccups as plants mature and stretch. When things look wrong, do not panic and dump your nutrients. Most issues in a shelf setup come from geometry, not chemistry. By reading the physical symptoms, you can usually fix the problem just by sliding a jar a few inches to the left or right.

🔍 Diagnosing leggy stems

When seedlings stretch upward with weak, pale stems, they are starving for photons. This usually happens when jars get pushed too far to the outer edges of the shelf. The plant spends all its energy trying to reach the bright center, which produces a fragile stalk that cannot support mature leaves. For a deeper diagnosis, walk through why hydroponic seedlings stay small under grow lights.

🩺 Fixing bleached leaves under the center bulb

If the leaves directly under the center of the light turn white and brittle, they are suffering from light bleaching. The LED panel is too close, and the intense radiation destroys the chlorophyll faster than the plant can rebuild it. Either raise the light panel by an inch or two, or swap the burnt plant with a lower-profile jar from the edge of the shelf to balance the canopy.

💬 A Word From Sarah

Tall oregano jars pushed to the back of the shelf, with a low tray of lettuce in front, block the airflow from a room fan and trap a pocket of wet, heavy air against the wall. That is exactly where powdery mildew starts, and it can take a whole back row within a week, leaving the leaves coated in white dust. So I stagger jar heights, leave at least two inches between the glass so air circulates freely, and give the shelf its own small clip-on USB fan, one of the cheapest fixes in indoor growing.
